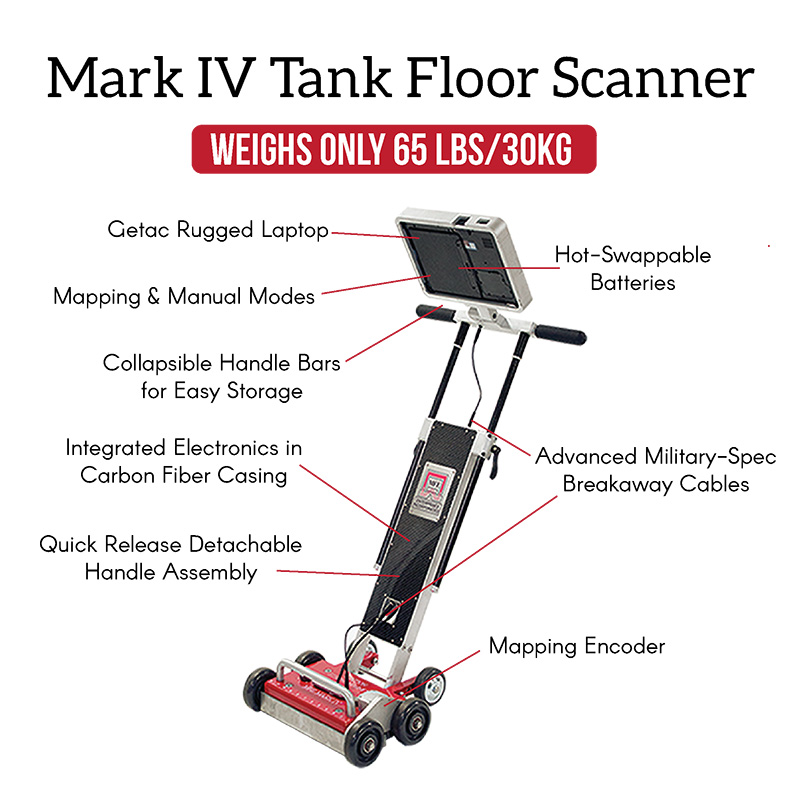

With almost twenty-five years of tank scanner manufacturing experience behind them, MFE Enterprises set out to redesign the tank scanner. They designed the Mark IV Tank Floor Scanner to be lighter than ever at only 65 lbs.
The slim handle assembly contains all of the electrical components within its carbon fiber frame. In lieu of large batteries weighing the unit down, the Mark IV is powered solely by the rugged Getac F110 tablet’s hot-swappable batteries. Not only does this lighten the load, but it also allows for uninterrupted scanning.
In less than 10 minutes, the operator can quickly recreate the tank floor plate layout, including annular plates. Detailed information for each plate is not required until the operator is ready to begin the MFL scan.
Our new speed tracking feature provides the operator immediate feedback so they are confident they are scanning within an optimal speed range, ensuring consistent, reliable, and accurate results.
Speed Compensation Software allows operators scanning at different speeds to obtain the same results. The signal response is normalized when scanning within the speed tracking range.
The software guides the operator through an intuitive process that begins with quickly generating a sketch of the tank floor bottom and ends with a comprehensive detailed MFL map of the tank floor bottom.

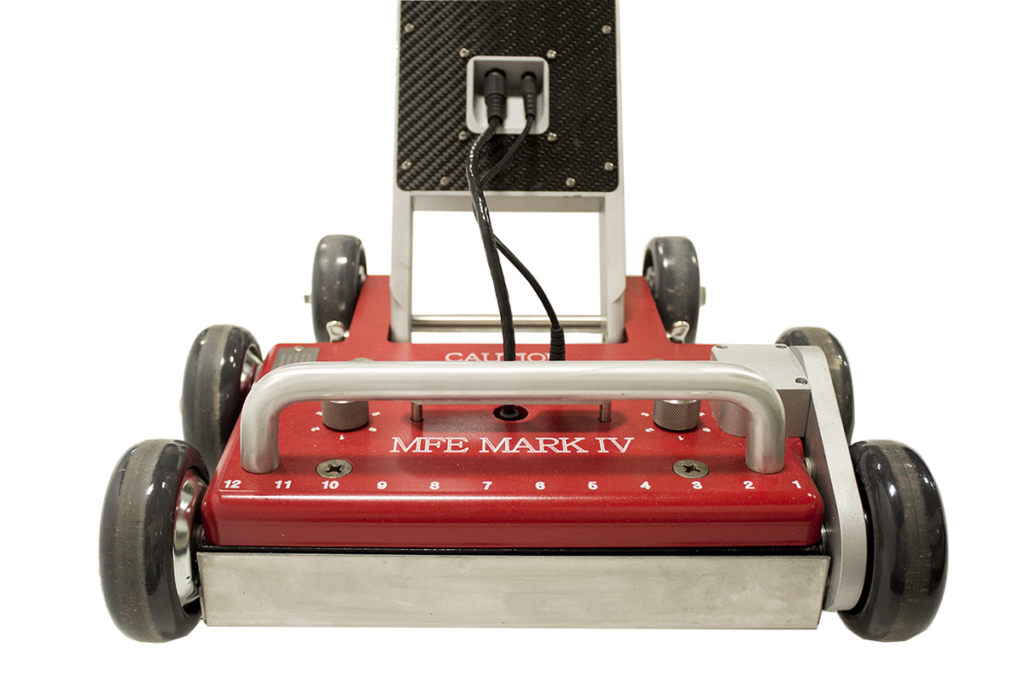

The real-time “A-Scan” display features an LED signal response that runs concurrently with a “C-Scan” mapping preview that clearly illustrates where the defect is relative to the magnetic bridge. This allows defects to be located even faster and drastically eliminates the needs of the scanner to be constantly moving while locating defects.
|Scan Width||12 Inches|
|Maximum Single Scan Length||None|
|Thickness Range||up to .75″*|
|(*.50″ to .75″ available with High Flux Bridge Upgrade)|
|Test through Coatings||Yes, if non-magnetic|
|Max Coating Thickness||Floor Plate and coating up to .75″ / 20 mm*|
|Real Time Analysis||Yes, 12 Channels|
|Power Requirements||Hot Swappable Batteries|
|Operation Weight||65 lb / 30 kg|
|Freeze Screen Alarm||Yes|
